Overview
This article will help you change the measurement units in Control from US/Imperial to Metric.
First, you must update the Imperial to Metric user constants. Then, you must run a SQL query on your database.
Change User Constants
First, you will need to change your user constants to metric units.
- Go to the Setup menu in Control
- Select Pricing Setup > All Pricing Setup
- On the left side, select User Constants
- In the next pane, select Imperial to Metric

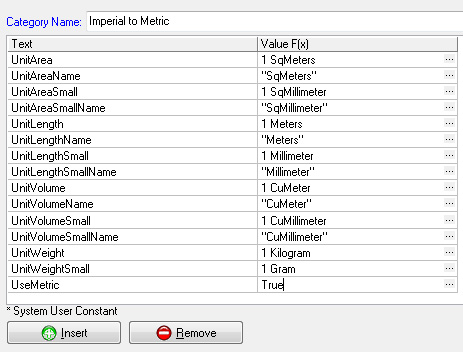

- Click Edit, then change the values to match the image below.
- Click Save.
SQL Query
Risk of Data Corruption if Run Improperly
High. Data is modified in this query. Do not run this unless you are an expert in SQL and fully understand the ramifications of performing this action. Before attempting anything be sure to make a full backup and a compressed (.zip) format backup as well. Doing otherwise may result in lost or contaminated data. All data modifications done through direct SQL are permanent and non-reversible.
SQL
-- Inches to MM (linear, square, and cubic) --UPDATE PricingPlanParam SET PricingUnitID = 7 WHERE PricingUnitID = 2 --UPDATE PricingPlanParam SET PricingUnitID = 13 WHERE PricingUnitID = 8 --UPDATE PricingPlanParam SET PricingUnitID = 19 WHERE PricingUnitID = 14 UPDATE Variable SET OutputUnitID = 7, SeqID=SeqID+1 WHERE OutputUnitID = 2 UPDATE Variable SET OutputUnitID = 13, SeqID=SeqID+1 WHERE OutputUnitID = 8 UPDATE Variable SET OutputUnitID = 19, SeqID=SeqID+1 WHERE OutputUnitID = 14 UPDATE Variable SET InputUnitID = 7, SeqID=SeqID+1 WHERE InputUnitID = 2 UPDATE Variable SET InputUnitID = 13, SeqID=SeqID+1 WHERE InputUnitID = 8 UPDATE Variable SET InputUnitiD = 19, SeqID=SeqID+1 WHERE InputUnitID = 14 UPDATE Part SET UnitID = 7, SeqID=SeqID+1 WHERE UnitID = 2 UPDATE Part SET UnitID = 13, SeqID=SeqID+1 WHERE UnitID = 8 UPDATE Part SET UnitID = 19, SeqID=SeqID+1 WHERE UnitID = 14 UPDATE PartInventoryConversion SET UnitID = 7, SeqID=SeqID+1 WHERE UnitID = 2 UPDATE PartInventoryConversion SET UnitID = 13, SeqID=SeqID+1 WHERE UnitID = 8 UPDATE PartInventoryConversion SET UnitID = 19, SeqID=SeqID+1 WHERE UnitID = 14 UPDATE GoodsItemPartLink SET ConsumptionUnitID = 7, SeqID=SeqID+1 WHERE ConsumptionUnitID = 2 UPDATE GoodsItemPartLink SET ConsumptionUnitID = 13, SeqID=SeqID+1 WHERE ConsumptionUnitID = 8 UPDATE GoodsItemPartLink SET ConsumptionUnitID = 19, SeqID=SeqID+1 WHERE ConsumptionUnitID = 14 -- Feet to M --UPDATE PricingPlanParam SET PricingUnits = 5 WHERE PricingUnits = 3 --UPDATE PricingPlanParam SET PricingUnits = 11 WHERE PricingUnits = 9 --UPDATE PricingPlanParam SET PricingUnits = 17 WHERE PricingUnits = 15 UPDATE Variable SET OutputUnitID = 5, SeqID=SeqID+1 WHERE OutputUnitID = 3 UPDATE Variable SET OutputUnitID = 11, SeqID=SeqID+1 WHERE OutputUnitID = 9 UPDATE Variable SET OutputUnitID = 17, SeqID=SeqID+1 WHERE OutputUnitID = 15 UPDATE Variable SET InputUnitID = 5, SeqID=SeqID+1 WHERE InputUnitID = 3 UPDATE Variable SET InputUnitID = 11, SeqID=SeqID+1 WHERE InputUnitID = 9 UPDATE Variable SET InputUnitID = 17, SeqID=SeqID+1 WHERE InputUnitID = 15 UPDATE Part SET UnitID = 5, SeqID=SeqID+1 WHERE UnitID = 3 UPDATE Part SET UnitID = 11, SeqID=SeqID+1 WHERE UnitID = 9 UPDATE Part SET UnitID = 17, SeqID=SeqID+1 WHERE UnitID = 15 UPDATE PartInventoryConversion SET UnitID = 5, SeqID=SeqID+1 WHERE UnitID = 3 UPDATE PartInventoryConversion SET UnitID = 11, SeqID=SeqID+1 WHERE UnitID = 9 UPDATE PartInventoryConversion SET UnitID = 17, SeqID=SeqID+1 WHERE UnitID = 15 UPDATE GoodsItemPartLink SET ConsumptionUnitID = 5, SeqID=SeqID+1 WHERE ConsumptionUnitID = 3 UPDATE GoodsItemPartLink SET ConsumptionUnitID = 11, SeqID=SeqID+1 WHERE ConsumptionUnitID = 9 UPDATE GoodsItemPartLink SET ConsumptionUnitID = 17, SeqID=SeqID+1 WHERE ConsumptionUnitID = 15 --This query looks for all instances of SqFeet and Inches in the PreDiscountFX field within the PricingPlan table. It replaces SqFeet with SqMeters and Inches with Millimeters. UPDATE PricingPlan SET SeqID=SeqID+1, PreDiscountFX = LEFT( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%SqFeet%', PreDiscountFX)-1) + 'SqMeters ' + SUBSTRING( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%SqFeet%', PreDiscountFX) + 6, 2048 ) WHERE CAST(PreDiscountFX AS VARCHAR(2048)) LIKE '%SqFeet%' GO UPDATE PricingPlan SET SeqID=SeqID+1,PreDiscountFX = LEFT( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%SqFeet%', PreDiscountFX)-1) + 'SqMeters ' + SUBSTRING( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%SqFeet%', PreDiscountFX) + 6, 2048 ) WHERE CAST(PreDiscountFX AS VARCHAR(2048)) LIKE '%SqFeet%' GO UPDATE PricingPlan SET SeqID=SeqID+1,PreDiscountFX = LEFT( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%Inches%', PreDiscountFX)-1) + 'Millimeters ' + SUBSTRING( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%Inches%', PreDiscountFX) + 6, 2048 ) WHERE CAST(PreDiscountFX AS VARCHAR(2048)) LIKE '%Inches%' GO UPDATE PricingPlan SET SeqID=SeqID+1,PreDiscountFX = LEFT( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%Inches%', PreDiscountFX)-1) + 'Millimeters ' + SUBSTRING( CAST(PreDiscountFX AS nvarchar(2048)), PatIndex('%Inches%', PreDiscountFX) + 6, 2048 ) WHERE CAST(PreDiscountFX AS VARCHAR(2048)) LIKE '%Inches%'
Additional Changes for v3 Dataset
Verify Variable Consumption Formulas

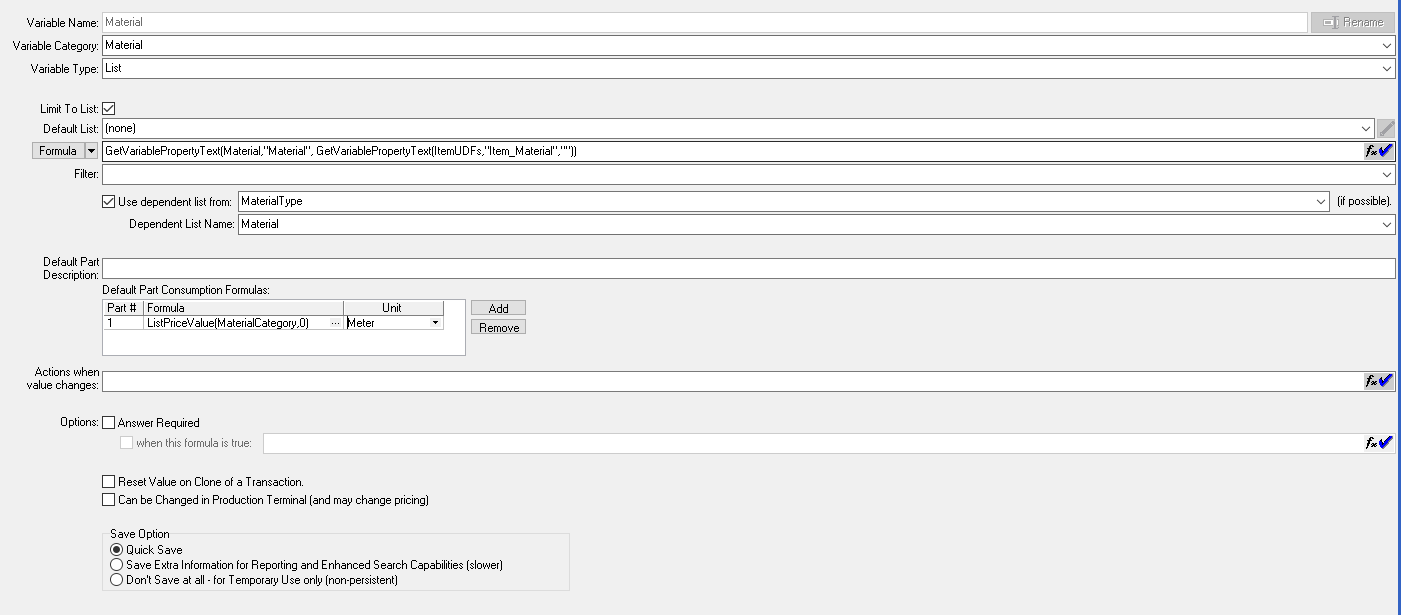

- Navigate to Setup > Pricing Setup > All Pricing Setup > Variables.
- Find your Material variables. For Digital Prints, you are navigating to Standards > Material > Material.
- Under Default Part Consumption Formula, change Unit from Foot to Meter.
- Click Save.
Verify Pricing Form Display Components
With the metric conversation, some of your pricing form component may need to updated as well. Please make a list of areas that are not updating automatically, and your consultant can make the necessary adjustments inside your system.
Update Display Units for Roll Materials
Risk of Data Corruption if Run Improperly
High. Data is modified in this query. Do not run this unless you are an expert in SQL and fully understand the ramifications of performing this action. Before attempting anything be sure to make a full backup and a compressed (.zip) format backup as well. Doing otherwise may result in lost or contaminated data. All data modifications done through direct SQL are permanent and non-reversible.
SQL
DECLARE @PartType INT = 0 -- Part Type is Material ,@UnitID INT = 54 -- Inventory Unit Type is Roll ,@ModifiedDate DATE = '2019-03-06' -- Date range of parts to update. Can be excluded on a new dataset. --Create Table to store Material Height UDF outside ot Part UDFXML CREATE TABLE #PartLength (PartID INT ,MaterialHeight INT) INSERT INTO #PartLength SELECT P.ID AS PartID ,UDFTable.MaterialHeight FROM Part P WITH(NOLOCK) LEFT JOIN ( SELECT ID AS PartID, -- if returning the text() value, we must tell it the data type ThisUDF.value('(Material_Height/text())[1]', 'varchar(15)') AS MaterialHeight, -- returns all UDFs as an XML datatype (with no root node in this case) ThisUDF.query('(node())') AS VariableNode FROM ( SELECT ID, CAST(UDFXML AS XML) AS XMLField FROM Part WHERE UDFXML IS NOT NULL ) Temp -- Cross Join this with a row for each ID in the UDF CROSS APPLY XMLField.nodes('//UDFs') AS PartUDFs(ThisUDF) ) AS UDFTable ON P.ID = UDFTable.PartID WHERE P.PartType = @PartType AND P.UnitID = @UnitID AND UseInvUnitsForDisplay = 1 AND CAST(P.ModifiedDate AS DATE) = @ModifiedDate --Update Part Table to Display Unit Values UPDATE Part SET SeqID = SeqID +1 , DisplayUnitID = 5 , DisplayUnitText = 'Meter' , DisplayUnitType = 3 , UseInvUnitsForDisplay = 0 , DisplayConversionFormula = '1/' + CAST((SELECT MaterialHeight FROM #PartLength WHERE PartID = Part.ID) AS VARCHAR(25)) WHERE PartType = @PartType AND UnitID = @UnitID AND UseInvUnitsForDisplay = 1 AND CAST(ModifiedDate AS DATE) = @ModifiedDate ; --Insert Conversion Formula into PartInventoryConversion Table INSERT INTO PartInventoryConversion SELECT (SELECT dbo.csf_chapi_nextid( 12016, 1 )) AS ID , -1 AS StoreID , 12016 AS ClassTypeID , ModifiedByUser AS ModifiedByUser , ModifiedByComputer AS ModifiedByComputer , ModifiedDate AS ModifiedDate , 0 AS SeqID , 0 AS IsSystem , 1 AS IsActive , ID AS PartID , 0 AS IsAutomatic , 0 AS IsDefault , DisplayConversionFormula AS ConversionFormula , 1 AS ConsumptionFormula , 'Always' AS InclusionFormula , 5 AS UnitID , 3 AS UnitType FROM Part WITH(NOLOCK) WHERE (SELECT COUNT(ID) FROM PartInventoryConversion PIC WITH(NOLOCK) WHERE PIC.PartID = Part.ID AND PIC.UnitID = 5) = 0 -- Figure out if the conversion already exist. If 0 returned, insert conversion. AND PartType = @PartType AND UnitID = @UnitID AND CAST(ModifiedDate AS DATE) = @ModifiedDate ; DROP TABLE #PartLength; --Declare records that need to be refreshed DECLARE @PartUpdate RefreshRecordsTableType ; INSERT INTO @PartUpdate (ID, ClassTypeID) SELECT ID, ClassTypeID FROM Part WHERE CAST(ModifiedDate AS DATE) = @ModifiedDate ; INSERT INTO @PartUpdate (ID, ClassTypeID) SELECT ID, ClassTypeID FROM PartInventoryConversion WHERE CAST(ModifiedDate AS DATE) = @ModifiedDate ; -- Refresh all modified records since users may be logged in. EXEC sp_RefreshRecords @PartUpdate ;
